Hp Techlink

A total of 6 series of hp-Industrial pumps and hp-Special pumps are available

• An internal gear rotor drives an eccentric, externally toothed gear.
• The rotor and the toothed wheel are sealed with a fixed crescent.

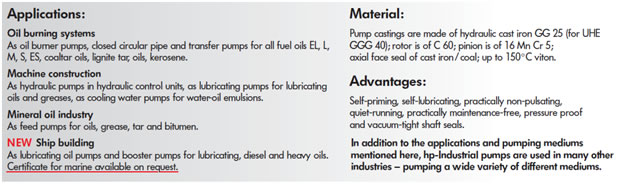

• Internal gear pumps have been in use for more than 40 years and are used in many areas of industry
• Because of their favorable construction and design.
• Discharge range: 45 bis 6000 l/h
• Operating pressures: 0 - 40 bar
• Temperatures: up to 150 ° C

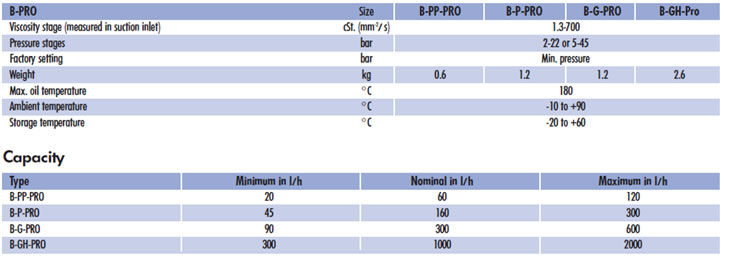

Hp-Pressure and flow regulating valve, type B-PRO 2

Type B-Pro

• B-PRO-valves are designed to control pressure and flow
• They are available in 4 sizes with capacities up to 2000 l/h.
• B-PRO-valves are typically used in connection with spill-back nozzles where pressure and flow in the return line determine the nozzle capacity.
