honeywell

Catalog Download


Our key products include

  • IR and UV Flame detectors.
  • Flame switches and Burner sequence controllers.
  • Modutrol Motor and actuators.
  • UGV [Universal Gas Valves] & Gas Train
  • Components
  • Adjustable port valves.
  • Gas pressure switches.
  • Ignition Transformers.
  • Pressuretrol Proportional Pressure
  • Controllers
  • Satronic Burner controls and
  • components.
  • Limits and pressure controls,
  • communications and software.
  • Applications include burners, boilers, furnaces,
  • Incinerators, packaged rooftop units, kilns, hot
  • water heaters and pool & spa heaters, etc.
  • These products are offered directly and through
  • authorized distributors to OEMs, System
  • Integrators, Contractors, Boiler manufacturers,
  • Burner manufactures and end users.

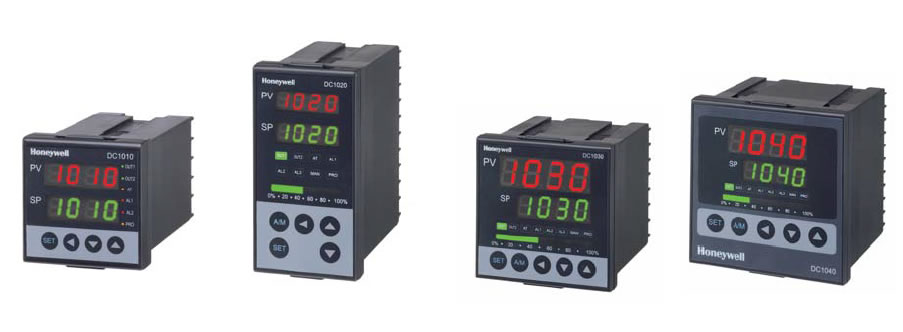

PID CONTROLERS

pid-controllers

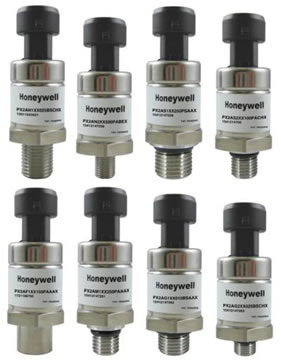

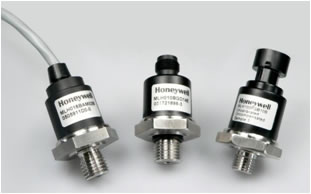

Heavy Duty Pressure Transmitters

FEATURES

  • 0...4 to 0...600 bar, 0...50 to 0...8000 psi, gage or sealed gage
  • For corrosive media
  • 0.5...4.5 V, 4...20 mA, 1...6 V, 1...5 V, 0...50 mV output
  • Field interchangeable
  • For harsh environments (IP65 or better)

SPECIFICATIONS Maximum ratings

  • Supply voltage (reverse polarity protection)
  • Maximum load current (MLH...A, C, E, G)
  • Source 1.0 mA Sink 1.0 mA
  • Temperature limits
  • Compensated, operating and storage -40 to 125°C Vibration 20.7 gRMS Mechanical shock 50 g (5 ms) 100 g (11 ms)

MEDIA COMPATIBILITY

  • Material in contact with media:
  • Stainless steel and Haynes 214 alloy
  • (all equivalent or better than 300 series SS)
  • Housing material: Black plastic Valox; HR426 - PTB polyester
heavy-duty-pressure-transmiter heavy-duty-pressure-transmiter


honeywell-pressure-transmiters


VG4000A3Manual reset gas valve, normally closed, Class “A”, manually open, Safety Shutoff Solenoid Gas Valve with flange connections. For use in gas leak detection systems or other applications Gas valve type - non regulated ON/OFF Media - natural gas, propane, air.


honeywell-pressure-transmiters


VG400SA Small Manual reset gas valve, normally open manually closed when energized. For use in applications requiring a normally open gas valve. Gas valve type - non regulated ON/OFF normally open, manual closing Media - natural gas, propane, air.


honeywell-pressure-transmiters


VG4000S1 Manual reset gas valve, normally open manually closed. For use in applications requiring a normally open gas valve. Gas valve type - non regulated ON/OFF normally open, manual closing Media - natural gas, propane, air.

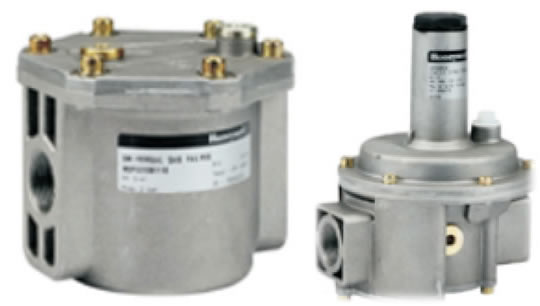

Gas Pressure Filters & Regulators HUF/HUP/HUPF

honeywell-gas-pressure-filters


Separate filters & regulators available. (HUF& HUP). Available as Combined gas filter regulator also. (HUPF). Up to 2” threaded end conn, 2”-4” flanged conn. Separate spring for various outlet pressures ( 5-150 mbar)



Universal Gas Valves & Accessories (Combination Gas Valves )

vq-400

VQ400

Combination gas valve without pressure regulation, Class “A” Combination Gas Valve. For control and regulation of gaseous fluids in gas power burners, ovens, furnaces and other gas consuming appliances. Gas valve type - 2 safety shutoff valves in series Media - natural gas, propane, air.

vr-400

VR400

Combination gas valve with pressure regulation, Class “A” Servo Regulated Combination Gas Valve. For control and regulation of gaseous fluids in gas power burners, ovens, furnaces and other gas consuming appliances. Gas valve type - 2 safety shutoff valves in series with pressure regulation Media - natural gas, propane, air.

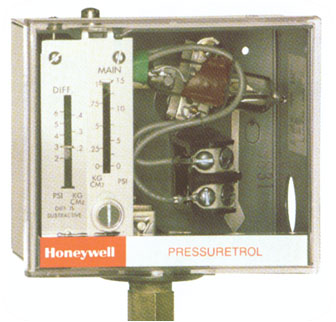

Other Combustion Control Products (Pressuretrol Controllers )

pressuretrol

L404

L404 Provide operating control, automatic or manual reset limit protection for pressure system up to 300psi. Use with steam, air, non combustible gases or other fluids non corrosive to pressure sensing elements.

pressuretrol2

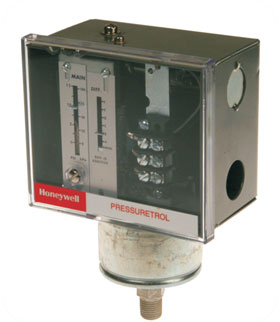

L91

L91 Provide modulating pressure operating control for regulation of liquid or air and other non corrosive gases. Use with steam, air, non combustible gases or other fluids non corrosive to the brass or phos-bronze (300psi model) bellows. Siphon loop included with the models for 10 to 300 psi ranges.

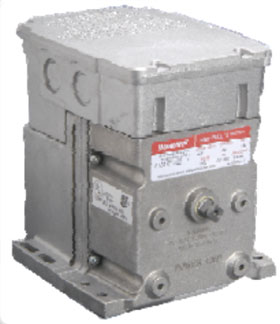

Modutrol Motors

modutrol-motor

Modutrol IV Motors replace all present generation Modutrol motors and set new, certifiable standard for Industry.

These motors provide following features :

  • Dual shaft.
  • Nema 3 housing higher holding torques.
  • Improved spring return holding torque.
  • Reduced power consumption.

Add on features available:

  • Diff Voltage models with field addable Transformer.
  • Diff strokes, timings and control inputs.
  • [On/Off, SPDT Floating / Modulating], Diff Torque ratings as per application.

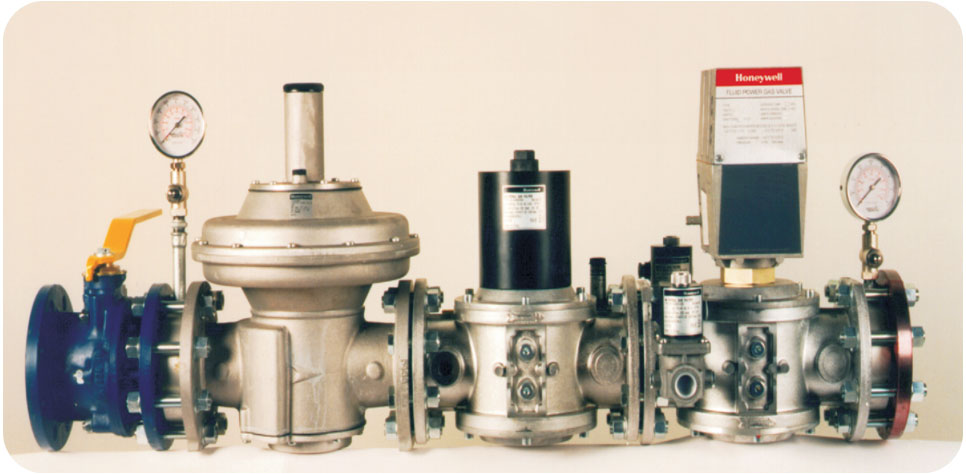

Gastrain System

gastrain-system

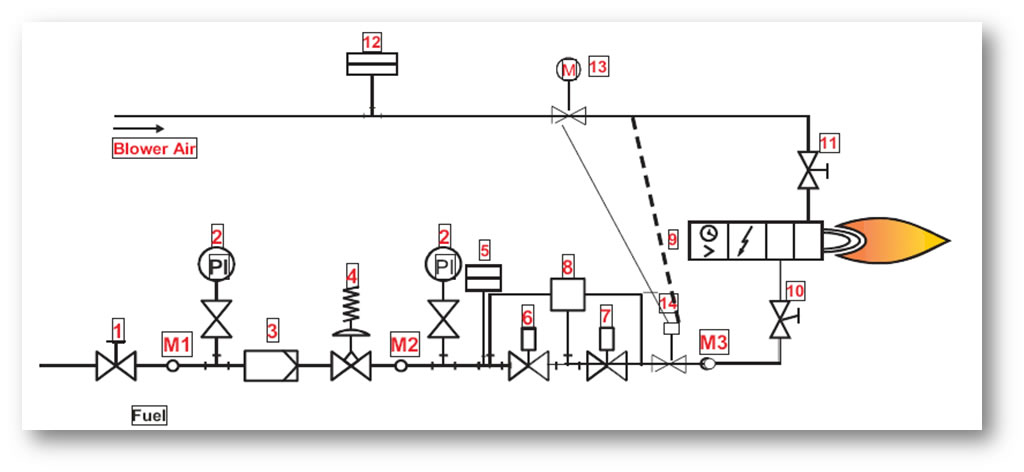

Typical Line diagram of Single Burner Gas Train System

line-diagram
  • Shut off cock
  • Pressure gauge
  • Gas filter
  • Pressure regulator
  • Gas pressure switch
  • First safety shut off valve
  • Second safety shut off valve(optional)
  • Valve proving system or vent valve (if required )
  • Burner
  • Gas pressure adjustable cock
  • Air regulating sleeve
  • Air pressure switch
  • Motorized butterfly valve
  • Gas flow control
